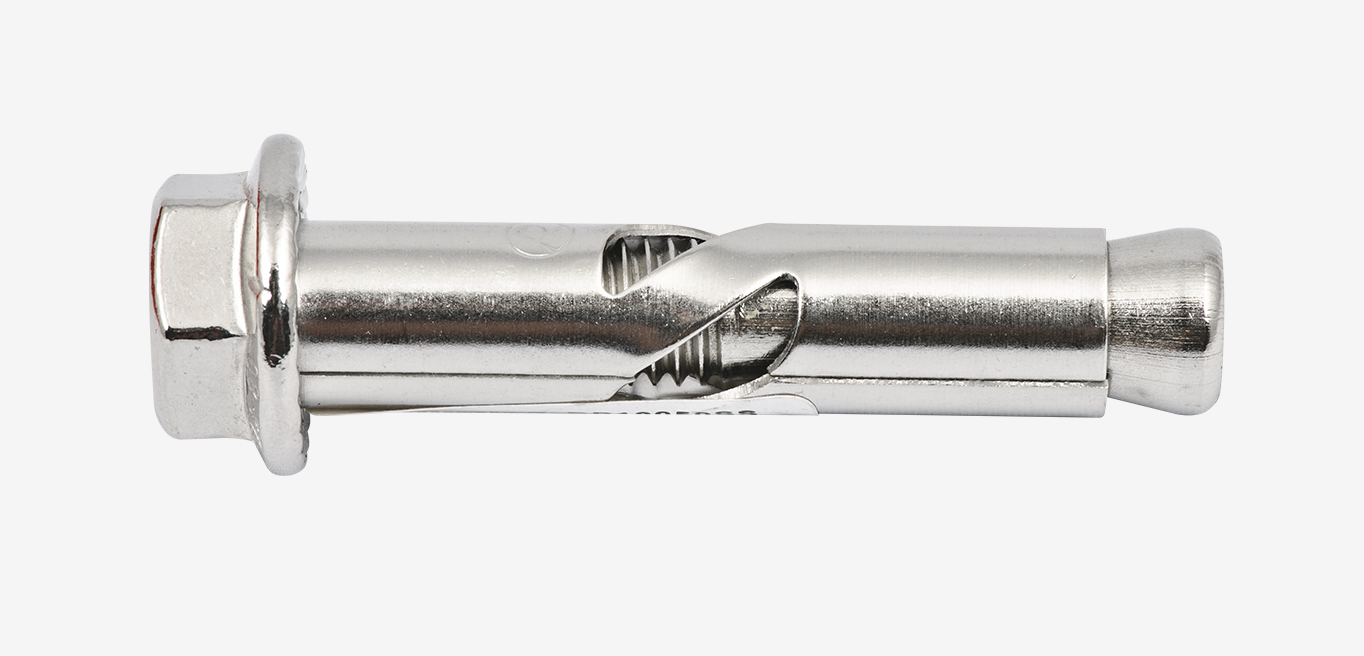

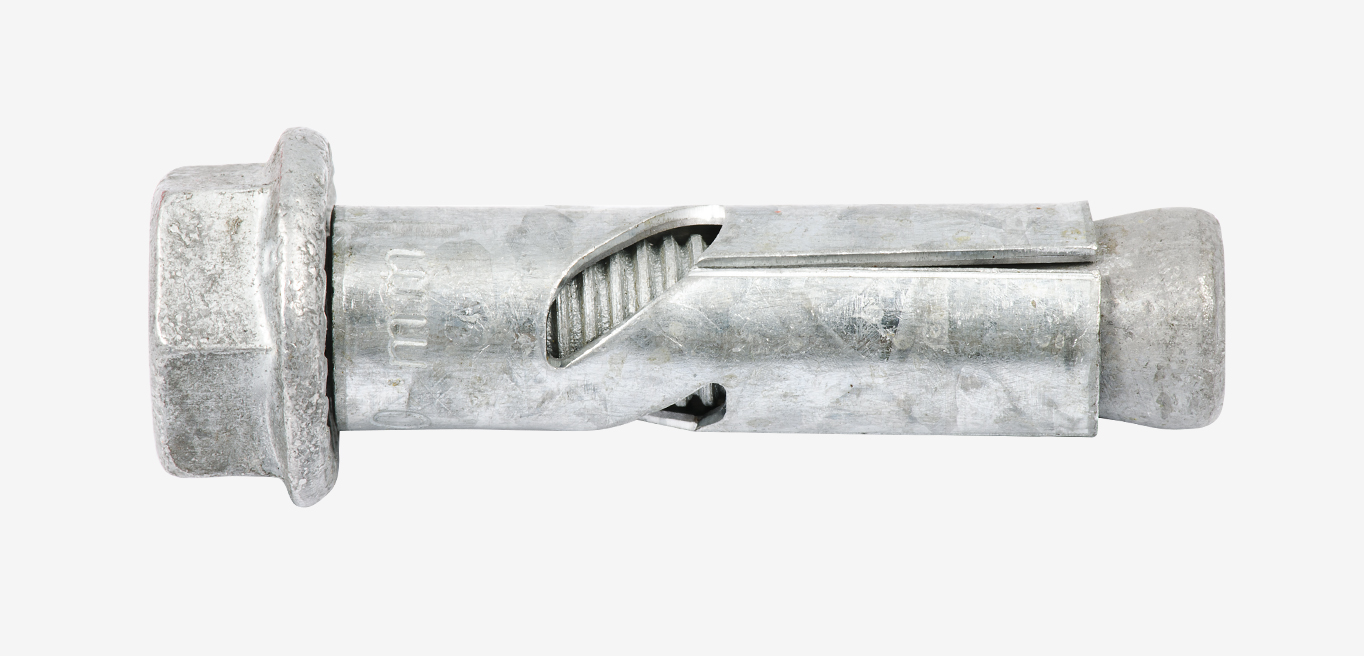

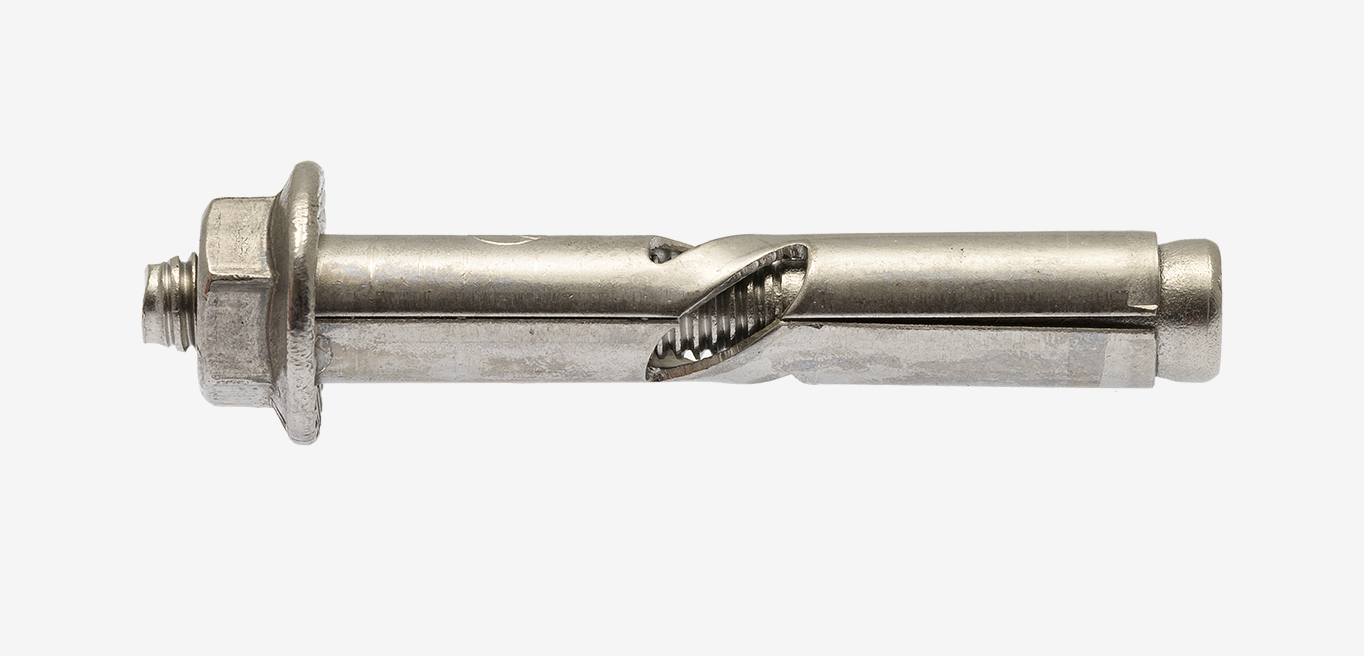

DynaBolt™ Plus Sleeve Anchors Hex Nut

The DynaBolt™ Plus Sleeve Anchor is a medium duty, torque controlled, expansion anchor, with an integrated pull-down section, designed for medium duty anchoring of timber and steel fixtures to concrete, brick or block. The DynaBolt™ Plus is available in a variety of different head styles and finishes.

Material

Galvanised
DP20115GH,DP16065GH,DP16110GH,DP16140GH,DP12070GH,DP20080GH,DP10040GH,DP12100GH,DP10050GH,DP12125GH,DP10075GH,DP10100GH,DP12060GH
Stainless Steel Grade AISI 316 (A4)
DP06040SS,DP06060SS,DP08040SS,DP08065SS,DP10050SS,DP10075SS,DP10100SS,DP12060SS,DP12070SS,DP12100SS,DP12125SS
Zinc Plated
DP16140,DP20080,DP20115,DP20160,DP16110,DP16065,DP12125,DP10125,DP08090,DP10040,DP10050,DP10075,DP10100,DP08065,D6026,DP06060,DP06040,DP08040

Anchor Size

M6
M8
M10
DP20115GH,DP06040SS,DP06060SS,DP08040SS,DP08065SS,DP10050SS,DP10075SS,DP10100SS,DP12060SS,DP12070SS,DP12100SS,DP12125SS,DP12070GH,DP12100GH,DP12125GH
M12

Anchor Length (mm)

26
DP08040
38
DP06040SS,DP06040
40
DP08040SS,D6026
41
DP10040GH,DP10040
45
49
DP10050SS,DP10050GH,DP10050
55
DP12060SS,DP12060GH
57
DP06060SS,DP06060
62
DP16065GH,DP16065
65
66
DP08065SS,DP08065
70
DP12070SS,DP12070GH
75
76
DP10075SS,DP10075GH,DP10075
80
81
DP20080GH,DP20080
92
DP08090
98
DP12100SS,DP12100GH
103
DP10100SS,DP10100GH,DP10100
105
106
DP16110GH,DP16110
110
113
DP20115GH,DP20115
124
DP10125
126
DP12125SS,DP12125GH,DP12125
140
DP16140GH,DP16140
157
DP20160

Before visiting a Stockist or Service Centre, contact them to ensure product availability.

PART NUMBER:

ADD TO TOOLBOX iEXPERT

-+PRODUCT INFORMATION

Click on the column headings to reorder the table.

ITEM CODE	Anchor Size	Anchor Length (mm)	Max. Fixture Thickness (mm)	Drilled Hole (mm)	Min. Hole Depth (mm)	Effective Length (mm)	Fixture Hole (mm)	Order Qty
DP20115GH	M10	113	25	20	125	102	24	5
DP06040SS	M10	38	12	6	45	34	8	100
DP06060SS	M10	57	30	6	55	53	8	100
DP08040SS	M10	40	6	8	50	34	10	100
DP08065SS	M10	66	25	8	65	60	10	50
DP10050SS	M10	49	20	10	55	42	12	50
DP10075SS	M10	76	30	10	65	69	12	50
DP10100SS	M10	103	50	10	80	96	12	25
DP12060SS	M10	55	10	12	70	47	15	25
DP16065GH	62	6	16	80	51	19	20
DP12070SS	M10	70	15	12	70	62	15	25
DP16110GH	106	35	16	120	95	19	10
DP12100SS	M10	98	45	12	95	90	15	20
DP16140GH	140	65	16	120	129	19	10
DP12125SS	M10	126	70	12	95	118	15	20
DP12070GH	M10	70	15	12	70	62	15	25
DP20080GH	81	8	20	100	70	24	10
DP10040GH	41	3	10	50	34	12	50
DP12100GH	M10	98	45	12	95	90	15	20
DP10050GH	49	20	10	55	42	12	50
DP12125GH	M10	126	70	12	95	118	15	20
DP10075GH	76	30	10	65	69	12	50
DP10100GH	103	50	10	80	96	12	25
DP12060GH	55	10	12	70	47	15	25
DP16140	140	65	16	120	129	19	10
DP20080	81	8	20	100	70	24	10
DP20115	113	25	20	125	102	24	5
DP20160	157	70	20	155	146	24	5
DP16110	106	35	16	120	95	19	10
DP16065	62	6	16	80	51	19	20
DP12125	126	70	12	95	118	15	20
DP10125	124	80	10	85	117	12	25
DP08090	92	50	8	75	86	10	50
DP10040	41	3	10	50	34	12	50
DP10050	49	20	10	55	42	12	50
DP10075	76	30	10	65	69	12	50
DP10100	103	50	10	80	96	12	25
DP08065	66	25	8	65	60	10	50
D6026	40	6	8	50	34	10	100
DP06060	57	30	6	55	53	8	100
DP06040	38	12	6	45	34	8	100
DP08040	26	3	6	30	23	8	100

STEEL ZINC PLATED

STAINLESS STEEL

GALVANISED STEEL

ADD

The selected variations added in the toolbox. Please view the items in the toolbox.

-+FEATURES & BENEFITS

- The DynaBolt™ Plus patented expansion sleeve closes gaps of up to 5mm, pulling down on the fixture to induce clamp load and provide improved security.
- The DynaBolt™ Plus is a fully assembled through fixture anchor. Therefore, assembly, marking out and re-positioning of fixtures is eliminated making installation fast and easy.
- The choice of multiple head styles makes the DynaBolt™ Plus a versatile anchor for a variety of different applications.

-+APPLICATIONS & TRADES

Bottom plates	Carpenter
Hand rails	Construction Contractor
Window frames	Window Installer
Pallet racking	Racking Installer

-+SPECIFICATIONS

Material	Carbon Steel, Stainless Steel 316 (A4)
Corrosion Protection	Zinc Plating, Galvanising
Head Styles	Hex Nut, Hex Bolt, Countersunk/Flat Head, Round Head, Hook, Eye, Tie Wire
Fixing Method	Through Fixture
Setting Method	Torque Controlled
Anchoring Method	Expansion
Thread Diameters	M4.5, M6, M8, M10, M12, M16
Drilled Hole Diameters	6mm, 8mm, 10mm, 12mm, 16mm, 20mm
Anchor Lengths	26mm, 32mm, 34mm, 38mm, 40mm, 41mm, 45mm, 49mm, 55mm, 57mm, 60mm, 62mm, 65mm, 66mm, 70mm, 75mm, 76mm, 80mm, 81mm, 85mm, 92mm, 98mm, 100mm, 103mm, 105mm, 106mm, 110mm, 113mm, 124mm, 125mm, 126mm, 140mm, 157mm
Maximum Fixture Thickness	3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 32mm, 35mm, 45mm, 49mm, 50mm, 55mm, 60mm, 65mm, 70mm, 80mm
Indicative Working Loads in 32MPa Concrete*	Max Tensile 2.7kN -16.6kN
Max Shear	2.5kN – 15.6kN
Substrates	Concrete, Solid Brick, Solid Block, Hollow Brick, Hollow Block, Hollow Slab
